Geometric Multigrid
Multigrid uses a hierarchy of scales to produce an operation “$M^{-1}$” that can be applied in linear time and such that $\lVert I - M^{-1} A \rVert \le \rho < 1$ independent of the problem size. We’ll consider the one dimensional case using the stencil $$ \frac{1}{h^2} \begin{bmatrix} -1 & 2 & -1 \end{bmatrix} $$ for the negative Laplacian. For convenience, we will scale the matrix by the constant $h^2⁄2$ so that the diagonal is 1.
Spectrum of discrete operator
Let’s refresh our memory about the spectrum of the discrete Laplacian.
%matplotlib inline
import numpy
from matplotlib import pyplot
pyplot.style.use('ggplot')
def laplace_dirichlet(m):
x = numpy.linspace(0, 1, m)
A = numpy.eye(m) - .5*numpy.eye(m,k=1) - .5*numpy.eye(m,k=-1)
return x, A
m = 101
x, A = laplace_dirichlet(m)
L, X = numpy.linalg.eigh(A)
pyplot.plot(L, '.')
print('smallest: {}'.format(L[:4]))
print('largest: {}'.format(L[-4:]))
print('cond', L[-1]/L[0])
smallest: [0.00047428 0.00189667 0.00426582 0.00757949]
largest: [1.99242051 1.99573418 1.99810333 1.99952572]
cond 4215.915727604934
# Modes associated with the smallest eigenvalues
for i in (-1, -2, -3):
pyplot.plot(x, X[:,i], label='$\lambda = %f$' % L[i])
pyplot.legend(loc='upper right');
# Examples from both ends of the spectrum
for i in (10,90):
pyplot.plot(x, X[:,i], '-o', label='$\lambda = %f$' % L[i])
pyplot.legend(loc='upper right');
# The condition number grows with problem size
ns = numpy.geomspace(11, 201, 15, dtype=int)
eigs = numpy.array([numpy.linalg.eigvalsh(laplace_dirichlet(n)[1])[[0, -1]] for n in ns])
pyplot.loglog(ns, eigs[:,0], 'o', label='min_eig(A)')
pyplot.loglog(ns, eigs[:,-1], 's', label='max_eig(A)')
pyplot.loglog(ns, ns**(-2.), '-', label='$n^{{-2}}$')
pyplot.xlabel('n')
pyplot.ylabel('cond')
pyplot.legend();
Fourier Analysis perspective
Consider the basis $\phi(x, \theta) = e^{i \theta x}$. If we choose the grid $x \in h \mathbb Z$ with grid size $h$ then we can resolve frequencies $\lvert \theta \rvert \le \pi/h$.
def symbol(S, theta):
"""Compute the symbol of the stencil S(theta)"""
if len(S) % 2 != 1:
raise RuntimeError('Stencil length must be odd')
w = len(S) // 2 # integer division rounds down
phi = numpy.exp(1j * numpy.outer(range(-w, w+1), theta))
return numpy.real_if_close(S @ phi)
def plot_symbol(S, ref_deriv=None, label='stencil'):
theta = numpy.linspace(-numpy.pi, numpy.pi)
sym = symbol(S, theta)
pyplot.plot(theta, sym, '.', label=label)
if ref_deriv is not None:
pyplot.plot(theta, theta**ref_deriv, '-', label='exact')
pyplot.legend()
pyplot.title('Symbol of S={}'.format(S))
pyplot.xlabel(r'$\theta$')
pyplot.ylabel('magnitude')
laplace_stencil = numpy.array([-1, 2, -1])
plot_symbol(laplace_stencil, ref_deriv=2);
The lowest frequency function resolvable with Dirichlet boundary conditions on a grid of size $(n-1) h$ has wavelength $\lambda = 2 (n-1) h$, thus frequency $\theta_{\min} = 2\pi/\lambda$.
theta_min = numpy.pi / (ns - 1)
symbol_min = symbol(laplace_stencil, theta_min)
pyplot.loglog(ns, eigs[:,0], 'o', label='min_eig(A)')
pyplot.loglog(ns, eigs[:,-1], 's', label='max_eig(A)')
pyplot.loglog(ns, symbol_min * eigs[:,-1]/4, '.', label='symbol')
pyplot.loglog(ns, ns**(-2.), '-', label='$n^{{-2}}$')
pyplot.xlabel('n')
pyplot.ylabel('cond')
pyplot.legend();
Damping properties of Richardson/Jacobi relaxation
Recall that we would like for $I - w A$ to have a small norm, such that powers (repeat iterations) will cause the error to decay rapidly.
I = numpy.eye(*A.shape)
ws = numpy.linspace(.3, 1.001, 50)
radius = [numpy.linalg.norm(I - w*A, ord=2) for w in ws]
pyplot.plot(ws, radius)
pyplot.xlabel('w');
- The spectrum of $A$ runs from $\theta_{\min}^2$ up to 2. If $w > 1$, then $\lVert I - w A \rVert > 1$ because the operation amplifies the high frequencies (associated with the eigenvalue of 2).
The value of $w$ that minimizes the norm is slightly less than 1, but the convergence rate is very slow (only barely less than 1).
for w in numpy.linspace(.4, .9, 5): plot_symbol(numpy.array([0, 1, 0] - w*.5*laplace_stencil), label='w={}'.format(w))
Evidently it is very difficult to damp low frequencies. This makes sense because $A$ and $I - w A$ move information only one grid point per iteration.
Coarse grids: Make low frequencies high again
As in domain decomposition, we will express our “coarse” subspace, consisting of a grid $x \in 2h\mathbb Z$, in terms of its interpolation to the fine space. Here, we’ll use linear interpolation.
def interpolate(m, stride=2):
if stride == 2:
P = numpy.eye(m) + .5*numpy.eye(m,k=1) + .5*numpy.eye(m,k=-1)
elif stride == 3:
P = numpy.eye(m) + 2./3*(numpy.eye(m,k=1)+numpy.eye(m,k=-1)) + \
1./3*(numpy.eye(m,k=2)+numpy.eye(m,k=-2))
return P[:, ::stride]
P = interpolate(len(A), stride=2)
pyplot.plot(P[:10,2:4], '-o')
P.shape
(101, 51)
We can “restrict” a fine-grid vector to the coarse space by $$ u^{2h} = \frac 1 2 P^T u^h .$$ This is an accurate approximation for low frequency functions, but inaccurate for high frequencies.
pyplot.plot(1./2 *P.dot(P.T @ X[:,81]), label='coarse')
pyplot.plot(X[:,81], label='fine')
pyplot.legend(loc='upper right');
The “Galerkin” approximation of the operator $A$ in the coarse space is $$ A^{2h} = P^T A P . $$
Ac = P.T @ A @ P
print(Ac.shape)
Lc, Xc = numpy.linalg.eigh(Ac)
pyplot.figure()
pyplot.plot(Lc, '*');
(51, 51)
# The coarse grid operator has comparable sparsity (tridiagonal here)
# to the fine grid operator.
pyplot.spy(Ac)
Ac[:5,:5]
array([[ 0.75, -0.25, 0. , 0. , 0. ],
[-0.25, 0.5 , -0.25, 0. , 0. ],
[ 0. , -0.25, 0.5 , -0.25, 0. ],
[ 0. , 0. , -0.25, 0.5 , -0.25],
[ 0. , 0. , 0. , -0.25, 0.5 ]])
Evidently the coarse operator looks like a discretization of the Laplacian on a coarser grid (modulo boundary conditions). Let’s consider the $A$-orthogonal projector onto the range of $P$, $$ S_c = \underbrace{P Ac^{-1} P^T}{M_c^{-1}} A . $$
# Consider the A-orthogonal projector into the range of P
Sc = P @ numpy.linalg.inv(Ac) @ P.T @ A
Ls, Xs = numpy.linalg.eig(Sc)
print(max(abs(Ls.imag)))
Ls = Ls.real
idx = Ls.argsort()
Ls = Ls[idx]; Xs = Xs[:,idx]
pyplot.plot(Ls, '.');
7.26732901562168e-15
- This spectrum is typical for a projector. For all vectors $x$ in the range of $P$, we know that $S_c x = x$. Why? Check $$ Sc \underbrace{P y}{x} .$$
- Meanwhile, for all vectors $x$ that are $A$-orthogonal to the range of $P$, we know that $S_c x = 0$. Why?
Two-grid method
The two-grid method using these coarse basis functions converges almost an order of magnitude per iteration.
# Iteration matrix for a V(1,1) cycle
Lt, Xt = numpy.linalg.eig((I - .67*A) @ (I - Sc) @ (I - .67*A))
pyplot.plot(Lt.real, Lt.imag, '.');
Fourier perspective
To compute the symbol of a two-grid iteration such as $$ (I - w A) (I - P Ac^{-1} P^T A) (I - w A), $$ we will need to represent the aliasing produced by grid transfers $P$ and $P^T$. To represent this, we’ll split the spectrum $[-\pi, \pi)$ into low frequencies $\theta{lo} \in [-\pi/2, \pi/2)$ and high frequencies $\theta{hi} = \theta{lo} + \pi$.
Recall that the grid functions $\phi(x,\theta) = e^{i\theta x}$ are eigenfunctions of $A$, so we can write the symbol $\hat A(\theta)$ as a scalar function of $\theta$. The coarse correction couples each low-frequency $\theta$ with its corresponding high frequency $\theta + \pi$, so we instead write the symbol as a $2\times 2$ matrix that couples high and low frequencies, $$ \hat{\mathbf A}(\theta) = \begin{bmatrix} \hat A(\theta) & 0 \ 0 & \hat A(\theta + \pi) \end{bmatrix} $$ where $\theta \in [-\pi/2, \pi/2)$ and the diagonal entries contain the usual (scalar) symbol. Meanwhile, restriction aliases high frequencies onto low frequencies since it only yields results at coarse points, thus we can write it as a $1\times 2$ matrix $$ \hat{\mathbf R}(\theta) = \begin{bmatrix} \hat R(\theta) & \hat R(\theta+\pi) \end{bmatrix} .$$ Now we can define prolongation $$ \hat{\mathbf P}(\theta) = \hat{\mathbf R}^T(\theta), $$ the $1\times 1$ coarse operator $$ \hat{\mathbf A}_c = \hat{\mathbf R} \hat{\mathbf A} \hat{\mathbf P} $$ which can be trivially inverted, and any other operators appearing in the 2-level algorithm.
def blocktheta(n=31):
theta_lo = numpy.linspace(-numpy.pi/2, numpy.pi/2, n+1)[:-1]
return numpy.array([theta_lo, theta_lo + numpy.pi]).T
def blocksymbol(stencil, restrict=False):
theta = blocktheta()
dx = numpy.array([-1, 0, 1])
phi = numpy.exp(1j * theta[:, :, None] * dx[None, None, :])
Sphi = phi @ stencil
if restrict:
return Sphi.reshape(-1, 1, 2)
else:
return Sphi[:, :, None] * numpy.eye(2)
A = blocksymbol(numpy.array([-1, 2, -1]))
R = blocksymbol(numpy.array([.5, 1, .5]), restrict=True)
P = R.swapaxes(-2, -1) # Transpose by swapping the last two axes
Ac = R @ A @ P
Acinv = 1/Ac
I = numpy.eye(2)[None, :, :]
w = .6 # Tune the damping parameter (w=2/3 is optimal)
nsmooths = 1 # What is the effect of more or less smoothing iterations
Tcoarse = I - P @ Acinv @ R @ A
Tsmooth = numpy.linalg.matrix_power(I - w*.5*A, nsmooths)
T = numpy.real_if_close(Tsmooth @ Tcoarse @ Tsmooth)
pyplot.plot(blocktheta()[:,0], T.reshape(-1, 4))
pyplot.xlabel(r'$\theta$')
pyplot.title('Symbol of iteration matrix')
pyplot.legend(labels=['ll', 'lh', 'hl', 'hh']);
T_eig = numpy.linalg.eigvals(T)
T_eig.sort(axis=1)
pyplot.plot(blocktheta()[:,0], T_eig)
pyplot.xlabel(r'$\theta$')
pyplot.title('Eigenvalues of Symbol');
These techniques can be extended in many ways, including * multiple dimensions, * more than two levels, * different coarsening rates, * block smoothers, * Gauss-Seidel and “multi-colored” variants, * systems of equations, * staggered grids.
Choices for linear multigrid
- Smoother
- Interpolation $P$ (coarse basis)
- Restriction $R$ ($P^T$, or different for non-symmetric problems)
- Coarse operator (Galerkin $P^T A P$, rediscretization)
Multigrid as factorization
We can interpret factorization as a particular multigrid or domain decomposition method.
We can partition an SPD matrix as $$J = \begin{bmatrix} F & B^T \ B & D \end{bmatrix}$$ and define the preconditioner by the factorization $$ M = \begin{bmatrix} I & \ B F^{-1} & I \end{bmatrix} \begin{bmatrix} F & \ & S \end{bmatrix} \begin{bmatrix} I & F^{-1}B^T \ & I \end{bmatrix} $$ where $S = D - B F^{-1} B^T$. $M$ has an inverse $$ M^{-1} = \begin{bmatrix} I & -F^{-1}B^T \ & I \end{bmatrix} \begin{bmatrix} F^{-1} & \ & S^{-1} \end{bmatrix} \begin{bmatrix} I & \ -B F^{-1} & I \end{bmatrix} . $$ Define the interpolation $$ P_f = \begin{bmatrix} I \ 0 \end{bmatrix}, \quad P_c = \begin{bmatrix} -F^{-1} B^T \ I \end{bmatrix} $$ and rewrite as $$ M^{-1} = [P_f\ P_c] \begin{bmatrix} F^{-1} P_f^T \ S^{-1} P_c^T \end{bmatrix} = P_f F^{-1} P_f^T + P_c S^{-1} P_c^T.$$ The iteration matrix is thus $$ I - M^{-1} J = I - P_f F^{-1} P_f^T J - P_c S^{-1} P_c^T J .$$
Permuted matrix $J$
In this ordering for our 1D Laplacian, the $F$ block is diagonal.
m = 101
x, A = laplace_dirichlet(m)
idx = numpy.concatenate((numpy.arange(0,m,2), numpy.arange(1,m,2)))
J = A[:,idx][idx,:]
pyplot.spy(J);
mf = m // 2 + 1
Pf = numpy.concatenate((numpy.eye(mf), numpy.zeros((m-mf, mf))))
Jf = Pf.T @ J @ Pf
Pc = numpy.concatenate((-numpy.linalg.inv(Jf).dot(J[:mf,mf:]), numpy.eye(m-mf)))
Jc = Pc.T.dot(J.dot(Pc))
Mf = Pf.dot(numpy.linalg.inv(Jf)).dot(Pf.T)
Mc = Pc.dot(numpy.linalg.inv(Jc)).dot(Pc.T)
I = numpy.eye(*J.shape)
T = I - (Mf + Mc) @ J
#T = (I - Mf.dot(J)).dot(I - Mc.dot(J))
#T = (I - .67*J).dot(I - Mc.dot(J))
#T = T.dot(T)
#T = (I - .67*J).dot(I - .67*J).dot(I - Mc.dot(J)).dot(I - .67*J)
#T = I - .67*J - Mc.dot(J)
Lt, Xt = numpy.linalg.eig(T)
pyplot.plot(Lt.real, Lt.imag, '.');
# Invert the permutation
idxinv = numpy.zeros(m, dtype=int)
idxinv[idx] = numpy.arange(m)
# Plot the coarse basis function in the original ordering
pyplot.plot(Pc[:,5][idxinv], '-o');
M = numpy.array([[1,2],[2,1]])
numpy.linalg.eigh(M)
(array([-1., 3.]), array([[-0.70710678, 0.70710678],
[ 0.70710678, 0.70710678]]))
Algebraic Multigrid
Factorization as a multigrid (or domain decomposition) method incurs significant cost in multiple dimensions due to lack of sparsity. It is not feasible to choose enough coarse basis functions so that coarse basis functions that use minimum energy extensions $-F^{-1} B^T$ (see $P_c$ and the notation above) have sufficiently local support.
Algebraic multigrid methods operate by specifying a coarsening algorithm and degree of sparsity, then attempting to choose good basis functions within those constraints. Classical AMG chooses coarse points much like the factorization methods above, but restricts the support of the basis functions and uses heuristics to weight the contributions in order to approximate selected functions (like the constant). Smoothed aggregation chooses aggregates and tentative basis functions $T$ on the aggregates (to reproduce the constants or other functions exactly), then uses Jacobi relaxation to compute an interpolation $P = (I - \omega D^{-1} J)T$ which is smoother than $T$, but with correspondingly larger support.
Let’s examine this construction of basis functions for the 1D Laplacian.
cfactor = 3
agg = numpy.arange(m) // cfactor
mc = max(agg)+1
T = numpy.zeros((m,mc))
T[numpy.arange(m), agg] = 1

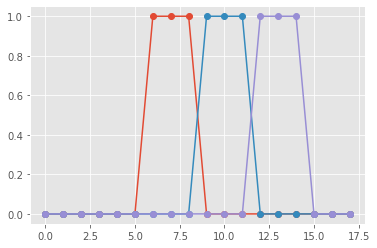

pyplot.plot(T[:6*cfactor,2:5], '-o');
### Plain aggregation
We can use the tentative prolongation $T$ in a multigrid algorithm. This is called plain aggregation and converges relatively slowly (note the relatively large maximum eigenvalue of the error iteration matrix).
Ac = T.T @ A @ T
Sc = T @ numpy.linalg.inv(Ac) @ T.T @ A
Lt, Xt = numpy.linalg.eig((I - .67*A) @ (I - Sc) @ (I - .67*A))
pyplot.plot(Lt.real, Lt.imag, '.');
Smoothed aggregation
By performing one iteration of Jacobi relaxation $$ P = (I - w A) T $$ we create coarses basis functions that more accurately approximate the smooth functions.
P = (I - .67*A) @ T
pyplot.plot(P[:6*cfactor,2:5], '-o');
We can form the Galerkin coarse operator using these smoothed coarse basis functions $A_c = P^T A P$ and observe better convergence than with plain aggregation. We alse experiment with multiple smoothing iterations and adjusting their weights.
Ac = P.T @ A @ P
Sc = P @ numpy.linalg.inv(Ac) @ P.T @ A
# Uniform convergence rate, though not as good as with
# a slower coarsening rate.
Lt, Xt = numpy.linalg.eig((I - .67*A) @ (I - Sc) @ (I - .67*A))
## Stronger smoothing helps
Lt, Xt = numpy.linalg.eig((I - .67*A) @ (I - .67*A) @ (I - Sc) @ (I - .67*A) @ (I - .67*A))
## And this can be tuned
# w1, w2 = .6, 1
# Lt, Xt = numpy.linalg.eig((I - w2*A) @ (I - w1*A) @ (I - Sc) @ (I - w1*A) @ (I - w2*A))
pyplot.plot(Lt.real, Lt.imag, '.');
- What if we use a more rapid coarsening factor?
- How can we replace Jacobi relaxation with Gauss-Seidel?
